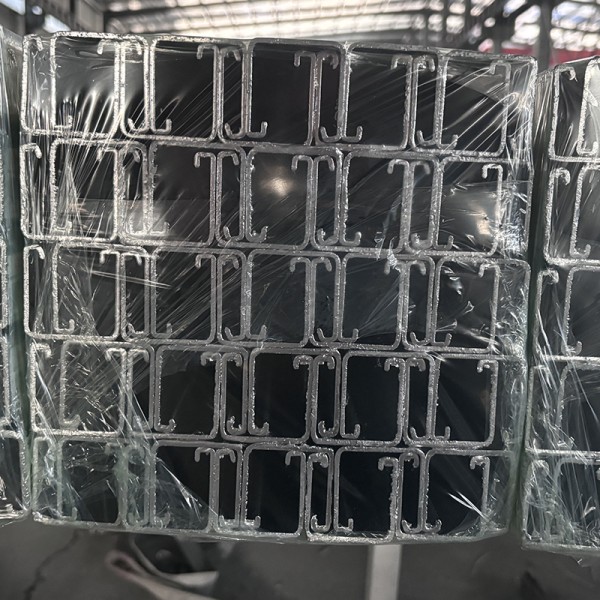

41×21 Strut Channel Solar Mounting Bracket Aluminum PV Panel Support

Product Categories
LANGFANG JIUCAN METAL PRODUCTS CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

41×21 Strut Channel Solar Mounting Bracket Aluminum PV Panel Support

  • 1
  • 2

Delivery Time : 15-20 work days

Compatible Profile : 41×21 Strut Channel

Size : Standard size

Price : $0.8-$3.5/m

Surface Treatment : Hot Dip Galvanized

Place of Origin : Hebei,China

Material : Q235/Steel

Load Capacity : 200kg – 600kg

Packaging Details : 50 Or 100PCS Are Packed In Steel Pallet , And Fasten With Steel Strips

Thickness : 0.8-3mm/Customized

Application : Solar Bracket, PV Panel Mount, Ground & Roof Solar System

Process Service : Cutting ,Punching

Certification : ISO9001

Product name : Solar Mounting Bracket

MOQ : 500 pcs

Payment Terms : T/T,T/T

Type : C/U channel

Supply Ability : 50 to 80+ tons/day

Tolerance : ±3%

Brand Name : Jiucan Metal

Contact Now

Solar Mounting Bracket Aluminum PV Panel Support


Introduction

Our aluminum solar mounting bracket is a high-performance support system designed for residential, commercial and industrial photovoltaic panel installation. Made of premium AL6005-T5 aluminum alloy with anti-corrosion anodized surface treatment, it provides excellent durability, light weight and long service life. The bracket system firmly holds PV panels in place, effectively resisting wind load, snow pressure and outdoor weathering. It is widely used for rooftop solar systems, ground-mounted power stations and solar farm projects. With standardized modular structure and pre-punched holes, the bracket allows fast on-site assembly without complicated welding or cutting. Each component is precision processed to ensure stable fitting and high structural integrity. Compliant with international PV engineering standards, it offers stable and reliable support for solar panels while reducing roof load and maintenance cost. This aluminum solar bracket is an ideal solution for efficient and long-lasting photovoltaic system installation.

Features

This solar mounting bracket features high-strength AL6005-T5 aluminum alloy construction for lightweight yet durable performance. The anodized surface provides excellent anti-corrosion, anti-UV and anti-aging properties, ensuring a service life of over 25 years. Modular design enables quick installation and easy adjustment, greatly improving construction efficiency. Stable structural layout evenly distributes pressure, enhancing wind resistance and snow load capacity. Universal compatibility fits most standard photovoltaic panel sizes and mounting configurations. Low maintenance requirements reduce long-term operating costs. The aluminum material is rust-proof and environmentally friendly, fully supporting green energy projects. With high stability and reliable performance, it ensures safe and efficient operation of solar panel systems in various outdoor environments.


Specification

Parameter Specification Details
Product Name Solar Mounting Bracket, PV Panel Support, Solar Racking Structure
Material AL6005-T5 Aluminum Alloy; Q235B Hot Dip Galvanized Steel
Surface Treatment Anodized (Aluminum); Hot Dip Galvanized (Steel); Pre-galvanized
Structure Type Fixed, Adjustable, Roof Mount, Ground Mount, Universal Type
Suitable Panel 150W–700W Monocrystalline & Polycrystalline PV Panels
Adjustable Angle 0°–60° (adjustable type); Fixed (custom angle)
Wind Load Resistance Up to 60m/s (130mph)
Snow Load Capacity 1.2–2.0 kN/㎡
Panel Orientation Portrait / Landscape
Installation Type Bolt Fastening, Modular Assembly, No Welding
Application Residential Rooftop, Commercial Roof, Solar Farm, Ground PV Station
Working Temperature -40℃ ~ +120℃
Service Life Aluminum: 25–30 years; Galvanized Steel: 20–25 years
Certification ISO9001, CE, TUV, SGS Test Report Available
Standard Length Customizable according to panel size
Thickness Aluminum: 1.8–3.0mm; Steel:0.8-3.0mm
MOQ 100 sets / Small trial order acceptable
OEM & ODM Size, hole, color, logo, packaging all customizable
Packing Carton + Pallet; Custom packaging support
Supply Ability Mass production, factory wholesale, fast delivery



41×21 Strut Channel Solar Mounting Bracket Aluminum PV Panel Support


FAQ

Q: Do you provide free sample?
A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.
Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...
Q: Could you change the size for the customer?
A: Yes, depends on your special demands.
Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
